JUPITER700

Unlock limitless possibilities with our Jupiter700 VMC model. Boasting impressive X, Y, and Z travel distances of 700mm, 400mm, and 300mm respectively, this high-speed vertical machining center is designed to tackle the most demanding machining tasks with ease. From prototyping to production, the Jupiter700 offers unparalleled accuracy, reliability, and efficiency, empowering you to meet and exceed your manufacturing goals with confidence.

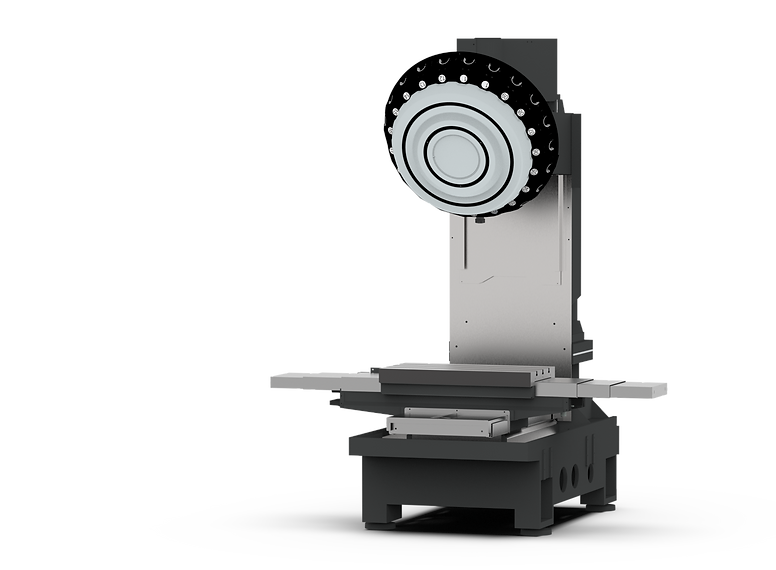

SPACIOUS DESIGN

The JUPITER-700 is a fusion of compact power and versatile capabilities designed for a myriad of applications. Crafted with precision, this machine boasts high-precision LM guideways, ball screws, and rapid traverse capabilities, ensuring an exceptional level of positional accuracy at an impressive speed.

Its robust structure, complemented by a generous table size of 800*400 mm and an extensive stroke of 700*400*300 mm along the x, y, and z axes, creates a formidable combination that delivers unparalleled accuracy and productivity.

Step into a new era of machining excellence with JUPITER-700 – where precision seamlessly blends with performance.

QUALITY INSPECTION

The machine undergoes a thorough examination of its geometric accuracies to deliver the highest standards of precision. Utilizing cutting-edge technology, our high-precision laser unit meticulously inspects positioning accuracy and repeatability. Complementing this, our ball bar tester rigorously assesses geometric errors, allowing for precise parameter adjustments to ensure superior circular accuracy.

At every stage, from inspection to adjustment, the machine exemplifies our unwavering commitment to setting new benchmarks in precision engineering.

CUTTING INSPECTION

The machine undergoes rigorous testing, including heavy cut and NAS assessments, before shipment. Each HCA machine is subjected to cutting tests, seamlessly integrated with meticulous parameter adjustments. This meticulous process ensures the delivery of the highest cutting quality possible, exemplifying our commitment to precision and performance.

AUTOMATIC TOOL CHANGER

The standard model features a 21-Tool Automatic Tool Changer (ATC) with a bi-directional capability. This allows seamless tool changes in both directions, ensuring precision and adaptability.

No. of Tools

21 TOOLS

ROTARY TABLE

The rotary table offers fully synchronized 4th and 5th Axis configurations, elevating the precision and versatility of the Jupiter-700 in machining operations.

COOLANT SYSTEM

The Jupiter-700 features a high-performance Coolant System, boosting tool life and cutting speeds while effectively clearing chips in deep-hole drilling. Its large-capacity chip tray ensures reliability, trouble-free operation, and easy maintenance, emphasizing the machine's commitment to efficiency and user-friendly functionality.

CONTROL SYSTEM

The Jupiter-700 is equipped with the operator-friendly Fanuc 0i TF-Plus operating system, ensuring an intuitive and efficient user experience.

OPERATING SYSTEM

FANUC 0i TF-PLUS

TOOLED UP SOLUTIONS

HCA's application engineering team excels in tailoring tooled-up solutions, drawing from extensive expertise to identify optimal machining processes and provide tailored work holding and tooling solutions. Our proficiency spans diverse markets, from delivering high-speed, productivity-focused solutions for the automotive sector to offering high precision and accuracy solutions tailored for the aerospace and mold-making industries. Our support extends beyond machine selection, encompassing fixture design and the identification of the ideal cutting tools for specific processes. Clients opting for our solutions benefit from comprehensive proofing of components, ensuring they meet desired cycle times.
